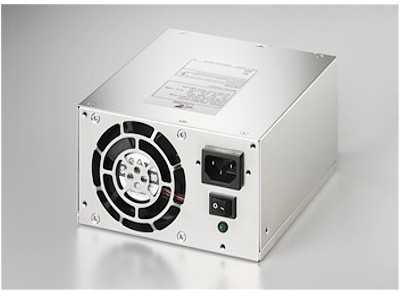

PSM-5660V ZIPPY EMACS PS2
|
|
Description
Color : metal Output Wattage : 660W Input Voltage : 90 ~ 264 VAC FULL RANGE Frequency : 47 ~ 63 HZ Input Current : 10 A ( RMS ) FOR 115VAC / Inrush Current : 20A MAX. FOR 115 VAC / PFC : PFC CAN REACH THE TARGET OF 95% @230V, FULL LOAD Efficiency : TYPICAL 80-85% AT 25℃ 115V FULL LOAD CoolingFan : 80mm +3v3V : 25A +5V : 25A +12V1 : 50A -12V : 0.8A +5Vsb : 3.5A
|
Over Voltage Protection : yes Over Current Protection : yes Short Circuit Protection : yes Hold-up Time : WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN Temperatur Range Operating : 0℃ ~ 50℃ Humidity : OPERATING:20%-80%, NON-OPERATING:10%-90% Other Features : SAFETY: TO MEET UL, CUL, TUV, CCC
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
786600 | PSM-5660V | 660W | PS/2 |
|
|
|
|
|
|
