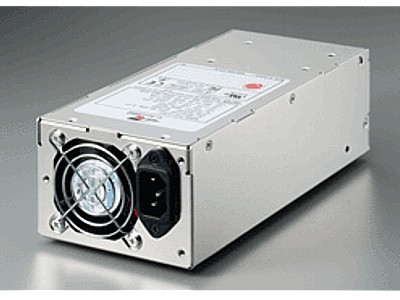

P2H-5400V ZIPPY EMACS 2U
Features :
* EFFICIENCY：83% TYPICAL AT 115VAC , FULL LOAD
* POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS
* OVER POWER PROTECTION：110～160% MAX
* OVER VOLTAGE PROTECTION：+5V→5.6V～6.6V +3.3V→3.6V～4.3V +12V→13.2V～15V
* SHORT CIRCUIT PROTECTION：+5V��?+12V��?+3.3V
* EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A
* SAFETY : TO MEET UL, CUL, TUV
* REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE.
|
|
Description
Color : metal
Output Wattage : 400W
Input Voltage : 90～264 VAC FULL RANGE
Frequency : 47～63HZ
Input Current : 6A (RMS) FOR 115 VAC/
Inrush Current : 40A MAX. FOR 115 VAC/
Efficiency : EFFICIENCY：83% TYPICAL AT 115VAC , FULL LOAD
CoolingFan : 40mm
+3v3V : 22A
+5V : 22A
+12V1 : 32A
-12V : 0.8A
+5Vsb : 3.5A
|
Over Voltage Protection : yes
Over Current Protection : yes
Short Circuit Protection : yes
Hold-up Time : 16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
Temperatur Range Operating : 0°～40°C
Other Features : SAFETY : TO MEET UL, CUL, TUV
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
780400 | P2H-5400V | 400W ATX | 2U Single |
|
|
|
|
|
|
|
