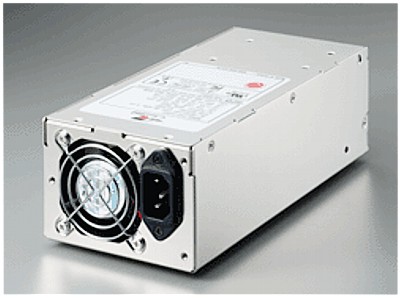

P2H-6350P ZIPPY EMACS 2U
Features :
This ZIPPY EMACS 2U Single Powersupply has:
Active PFC (full range)
12V Max. Current: 28A
EMI Noise Filter: FCC CLASS B, CISPR22 CLASS B
*SAFETY: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950
Remote on/off control
Cooling: ONE 60 mm DC Fan
|
|
Description
Construction : Metal
Color : Metal
Intel Form Factor : ATX 12V ver. 1.3
Output Wattage : 350W
Input Voltage : 90 - 264VAC
Frequency : 47 - 63Hz
Input Current : 4A - 8A
Inrush Current : 60A - 80A
PFC : Active
Efficiency : 65% Typical
CoolingFan : 1 x 60mm
+3v3V : 20A
+5V : 25A
+12V1 : 28A
-5V : 0.5A
-12V : 0.5A
+5Vsb : 2A
|
Motherboard Connector : 20pin
CPU connector : 4pin
4-Pin For Peripheral : 6
4-Pin For Floppy : 2
Cable Length : ATX 430mm / ripherals 600mm
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
Built In EMI filter : Yes
MTBF : 100.000hrs
Hold-up Time : 16ms Minimum
Temperatur Range Operating : 0°C - 40°C
Product Application : Rackmount / Server / IPC
|
|
| Additional Information
|
Packaging Information
Carton Width : 369 mm
Carton Height : 251 mm
Carton Depth : 502 mm
Width : 100 mm
Height : 70 mm
Depth : 215 mm
Net Weight : 23.00 kgs
Gross Weight : 24.00 kgs
Pack CuFt : 2
Carton : 10 pcs
|
|
|
|
|
