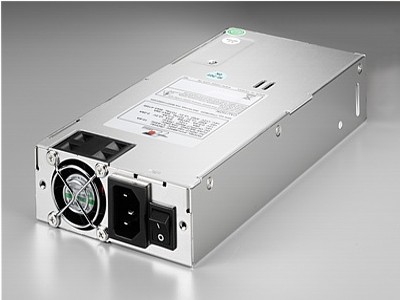

P1H-5500V ZIPPY EMACS 1U
Features :
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: 80% TYPICAL AT 115V, FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL, CUL, TUV, CCC * 3.3V / 5V REMOTE SENSING
* COOLING: ONE 40mm DC FANS
* ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D
|
|
Description
Color : metal
Output Wattage : 500W
Input Voltage : 90 ~ 264 VAC FULL RANGE
Frequency : 47~63 HZ
Input Current : 10.0 A ( RMS ) FOR 115VAC
Inrush Current : 40A MAX. FOR 115 VAC
PFC : ACTIVE POWER FA40A MAX. FOR 115 40A MAX. FOR 115 VACVACCTOR
Efficiency : EFFICIENCY: 80% TYPICAL AT 115V, FULL LOAD
CoolingFan : 40mm
+3v3V : 25A
+5V : 25A
+12V1 : 40A
-12V : 0.8A
+5Vsb : 3.5A
|
Over Voltage Protection : yes
Over Current Protection : yes
Short Circuit Protection : yes
Built In EMI filter : EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
Temperatur Range Operating : 0℃ - 50℃
Temperatur Range Storage : –20℃ - 80℃
Other Features : SAFETY: TO MEET UL, CUL, TUV, CCC 3.3V / 5V REMOTE SENSING
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
715403 | P1H-5500V | 500W ATX | 1U Single |
|
|
|
|
|
|
|
