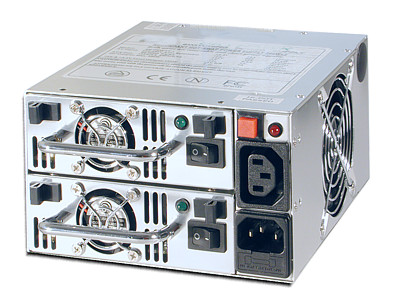

SH-300AW-1
Features :
Universal Power Input
Active Power Factor Correction
Remote DC Sense on +5V and +3.3V
MTBF>100,000 Hours
Compact Size Module Design
Power Fault Alarm Signals
Current Sharing on +5V, +3.3V & +12V
Front Panel LED to Indicate Power Status
|
|
Description
Construction : Aluminium Alloy
Color : Aluminium
Intel Form Factor : ATX 12V ver. 2.0
Output Wattage : 300W
Input Voltage : 115 / 230 VAC
Frequency : 50 - 60Hz
Input Current : 4A - 8A
PFC : Active PFC
Efficiency : 63% Typical
Switch : ON / OFF, Alarm Reset / Voltage
Indicators : LED for Power ON / OFF
Power Fault Alarm Signals : LED / Alarm Signal
Hot Swap : Yes
CoolingFan : 1 x 80mm
+3v3V : 20A
+5V : 22A
+12V1 : 10A
+12V2 : 8A
-5V : 0.5A
-12V : 1A
+5Vsb : 2A
Dual +12V Output : Yes
|
Motherboard Connector : 24pin + 4pin
CPU connector : 8pin
Connector S-ATA : 2
4-Pin For Peripheral : 8
4-Pin For Floppy : 3
S-ATA : Yes
All Output Cables : Nylon Sleeve on ATX Cable
Cable Length : ATX 450mm / Peripherals 730mm
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
MTBF : 100.000hrs
Hold-up Time : 16ms Minimum
Product Application : Rackmount / Server / IPC
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
710300 | SH-300AW-1 | 2x300W ATX | Mini-Redundant | Active PFC
|
|
Packaging Information
Carton Width : 150 mm
Carton Height : 240 mm
Carton Depth : 270 mm
Width : 150 mm
Height : 86 mm
Depth : 185 mm
Net Weight : 4.00 kgs
Gross Weight : 5.00 kgs
Pack CuFt : 0.35
Carton : 1 pcs
|
|
|
|
|
