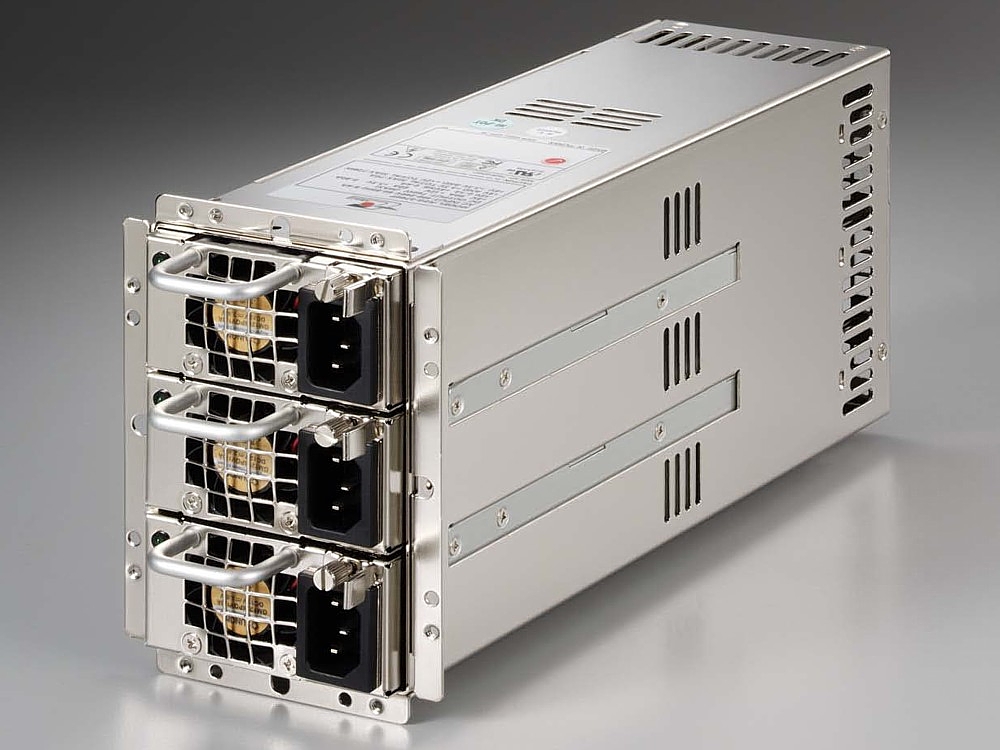

R3G-5950V4V ZIPPY EMACS N+1 red
|
|
Description
Construction : metal
Color : metal
Output Wattage : 950W
Input Voltage : 90~264VAC FULL RANGE
Frequency : 47~63HZ
Input Current : 8A/4A (115 / 230 VAC) POWER MODULE
Inrush Current : 8A/4A (115 / 230 VAC) POWER MODULE
PFC : Active
Efficiency : 82% TYPICAL AT 115VAC, FULL LOAD
Hot Swap : Yes
CoolingFan : 40mm DC FANS (one module)
+3v3V : 32A max
+5V : 32A max
+12V1 : 76A max
-12V : 1.2A max
+5Vsb : 4A max
|
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
Built In EMI filter : EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
Hold-up Time : 16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
Temperatur Range Operating : OPERATING 0°C~40°C
Product Application : Server,Workstation,Storage System
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
706652 | R3G-5950V4V | 950W | N+1 red. | High efficiency
|
|
|
|
|
|
|
