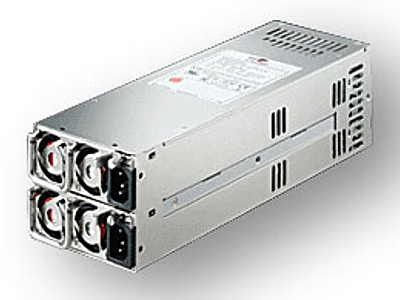

R2W-6460P ZIPPY EMACS 2U red
Features :
R2W-6460P ZIPPY EMACS 2U red. Power Supply.
Active PFC (full range), MEET IEC-1000-3-2 CLASS D
*DUAL EMI NOISE INLET FILTER: FCC CLASS B, CISPR22 CLASS B
*SAFETY: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950
*HOT-SWAPPABLE / HOT-PLUGGABLE REDUNDANCY FUNCTION
*Use 48-pins industrial connectors
|
|
Description
Construction : Aluminium Alloy Modules, Metal Frame
Color : Metal
Intel Form Factor : EPS 12V
Output Wattage : 460W
Input Voltage : 90 - 264VAC
Frequency : 47 - 63Hz
Input Current : 4A - 8A
Inrush Current : 60A - 80A
PFC : Active
Efficiency : 68% Typical
Indicators : LED for Power ON / OFF, Power Fail
Power Fault Alarm Signals : LED / Alarm Signal / TTL
Hot Swap : Yes
CoolingFan : 2 x 40mm per Module
+3v3V : 24A
+5V : 30A
+12V1 : 32A
-5V : 0.7A
-12V : 0.7A
+5Vsb : 2A
|
Motherboard Connector : 24pin + 4pin
CPU connector : 8pin
4-Pin For Peripheral : 6
4-Pin For Floppy : 2
Cable Length : ATX 430mm / Peripherals 600mm
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
Built In EMI filter : Yes
MTBF : 100.000hrs
Hold-up Time : 16ms Minimum
Temperatur Range Operating : 0°C - 40°C
Temperatur Range Storage : -20°C - 70°C
Product Application : Rackmount / Server / IPC
|
|
Packaging Information
Carton Width : 220 mm
Carton Height : 225 mm
Carton Depth : 390 mm
Width : 101 mm
Height : 84 mm
Depth : 300 mm
Net Weight : 5.30 kgs
Gross Weight : 6.30 kgs
Pack CuFt : 0.71
Carton : 1 pcs
|
|
|
|
|
